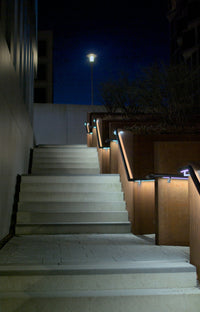

How to Add LED Lighting to Your Handrails for Safety and Style

December 6, 2025 | Jesus De Loera

LED handrail lighting isn't just about preventing late-night stumbles (though it definitely does that). It's a brilliant way to transform ordinary railings into stunning architectural features while significantly boosting safety for everyone using your stairs. The soft, gentle glow of embedded LEDs illuminates the path ahead, enhancing visibility in low-light conditions and minimizing the risk of slips or falls.

We've seen how the right lighting can completely elevate both the functionality and aesthetic appeal of any railing system. Whether you're looking to upgrade existing railings or planning new ones, adding LED lighting is one of the smartest investments you can make for your home's safety and style.

5 Practical LED Lighting Ideas for Handrails

1. Integrated LED Strip Lighting

Best for: New installations or major renovations
Use: Indoor and outdoor
Installation: Requires routing a groove in the handrail

This is the most seamless approach, where LED strips are embedded directly into a routed channel along the underside of your handrail. LED strips are hidden inside the handrail and equipped with a diffuser cover to prevent children from touching them while providing even light distribution.

How to Install:

Route a 1/4" to 3/8" groove along the underside of your handrail
Install low-voltage LED strips (12V or 24V recommended)
Add a clear diffuser cover to protect the strips and create even lighting
Wire to a compatible transformer and wall switch or dimmer
Seal all connections for outdoor installations

2. Clip-In LED Modules

Best for: Existing railings with compatible channels
Use: Indoor and outdoor
Installation: No drilling required

LED modules clip into full-length channels without drilling or gluing, making this perfect for retrofitting existing systems. You can easily add lighting to any handrail by placing the LED modules wherever you desire.

How to Install:

Choose modules compatible with your handrail channel system
Simply clip modules into the channel at desired spacing
Connect modules together in a 'daisy chain' configuration
Run low voltage wires to wall connection or battery pack
Add anti-slip vinyl insert to finish the installation

3. Under-Rail LED Mounting

Best for: Any existing handrail
Use: Indoor and outdoor
Installation: Adhesive or bracket mounting

This versatile approach works with virtually any handrail style. Fully concealed, internally wired LED strips can be mounted under existing rails using adhesive backing or small mounting brackets.

How to Install:

Clean handrail surface thoroughly
Measure and cut LED strips to desired lengths
Apply strips using strong adhesive backing or mounting clips
Use aluminum channels with diffusers for professional appearance
Connect to power source using weather-appropriate connectors

4. Spotlights and Puck Lights

Best for: Accent lighting and specific illumination points
Use: Indoor and outdoor
Installation: Simple mounting with minimal wiring

LED spotlight systems for handrails offer focused illumination every 18" to 36" along the railing. This approach provides dramatic lighting effects while using fewer fixtures.

How to Install:

Mark placement points along handrail (typically 24" spacing)
Drill small holes for wiring if needed
Mount puck lights with provided brackets or adhesive
Connect lights in series with low-voltage cable
Install transformer in protected location

5. Solar-Powered LED Options

Best for: Outdoor railings without electrical access
Use: Outdoor only
Installation: No wiring required

Self-contained solar LED units charge during the day and automatically illuminate at dusk. Perfect for deck railings, garden paths, and remote outdoor locations.

How to Install:

Choose units with adequate solar panel size for your location
Mount lights with included brackets or adhesive
Ensure solar panels receive adequate sunlight exposure
Position sensors to avoid false triggering from indoor lights
No electrical connections required

Handrail Preparation and Cleaning

Before installing any LED lighting system, proper preparation ensures optimal performance and longevity.

Surface Cleaning Process

Remove All Debris: Use compressed air or vacuum to remove dust and loose particles
Degrease Thoroughly: Clean with isopropyl alcohol (70% or higher) to remove oils and residue
Sand if Necessary: Light sanding with 220-grit sandpaper improves adhesion on smooth surfaces
Final Wipe: Use tack cloth or lint-free rag with alcohol for final cleaning
Allow to Dry: Wait 30 minutes before applying any adhesive or mounting hardware

Metal Handrail Prep

Check for rust or corrosion and address with appropriate primer
Ensure powder coating or paint is securely adhered
Use primer designed for your specific metal type if needed

Wood Handrail Prep

Fill any gaps or imperfections with wood filler
Sand smooth and clean thoroughly
Apply appropriate wood sealer if installing outdoor lighting
Allow complete curing before LED installation

Renter-Friendly Solutions

Battery-Powered Options

Rechargeable LED Strip Systems: Modern battery-powered LED strips can run 8-12 hours on a single charge. USB-C rechargeable systems offer convenience without permanent electrical connections.

Installation Tips:

Use Command strips or removable adhesive mounting
Choose low-profile battery packs that can be hidden
Consider remote-controlled or smart app connectivity
Plan charging access for easy maintenance

Temporary Mounting Methods

Command Strip Mounting: Use heavy-duty Command strips rated for outdoor use if installing exterior lighting. These support LED strips and small fixtures without permanent adhesive.

Magnetic Options: For metal railings, magnetic mounting clips provide strong hold without damage. Perfect for steel or iron handrails.

Clamp-On Systems: Adjustable clamps designed for specific railing sizes offer tool-free installation and removal.

Removable Power Solutions

Plug-In Transformers: Use standard household outlets with extension cords rated for outdoor use when necessary.

Battery Banks: Portable power banks can run LED systems for extended periods, perfect for temporary installations or events.

Safety Considerations

Electrical Safety

Always use low-voltage (12V or 24V) LED systems for handrail applications
Ensure all outdoor connections are weatherproof and properly sealed
Install GFCI protection for any AC power connections
Follow local electrical codes and obtain permits when required

Installation Safety

LED handrails are designed to stay cool, making them safe and comfortable in both indoor or outdoor spaces
Avoid overloading circuits with too many LED fixtures
Secure all wiring to prevent tripping hazards
Test all connections before final installation

Long-Term Maintenance

LED lighting uses 75 percent less energy than incandescent bulbs and last 25 times longer
Regular cleaning of diffusers maintains optimal light output
Check connections annually for outdoor installations
Replace batteries in portable systems as needed

Professional vs. DIY Installation

DIY-Friendly Projects:

Battery-powered systems
Adhesive-mounted LED strips
Clip-in module systems
Solar-powered units

Professional Installation Recommended:

Hard-wired electrical connections
Complex routing or cutting of handrails
Integration with home automation systems
Large-scale commercial installations

Conclusion

Adding LED lighting to your handrails transforms them from simple safety features into stunning design elements that enhance both the aesthetics and functionality of your space. Whether you choose integrated strips for seamless professional results, clip-in modules for easy retrofitting, or battery-powered solutions for renter-friendly installation, the right LED lighting system will provide years of safe, beautiful illumination.

The key is choosing the approach that matches your skill level, budget, and long-term needs. With proper preparation and the right components, you can achieve professional-looking results that will make your handrails a standout feature of your home's design while significantly improving safety for everyone who uses them.
